Machinery Specifications
Digital scroll compressor with aluminized coating
460 volts, 3 phase
30 amps circuit requirement
Temperature range: -35C to +30C
Refrigerant: R134A
Dimensions
Exterior: 20’L x 8’W x 8’6”H
Interior: 17’10″L x 7’6”W x 7’5”H
Door Opening: 7’6”W x 7’5”H
Weight: 2807,737 KG
Payload: 27673.67 KG

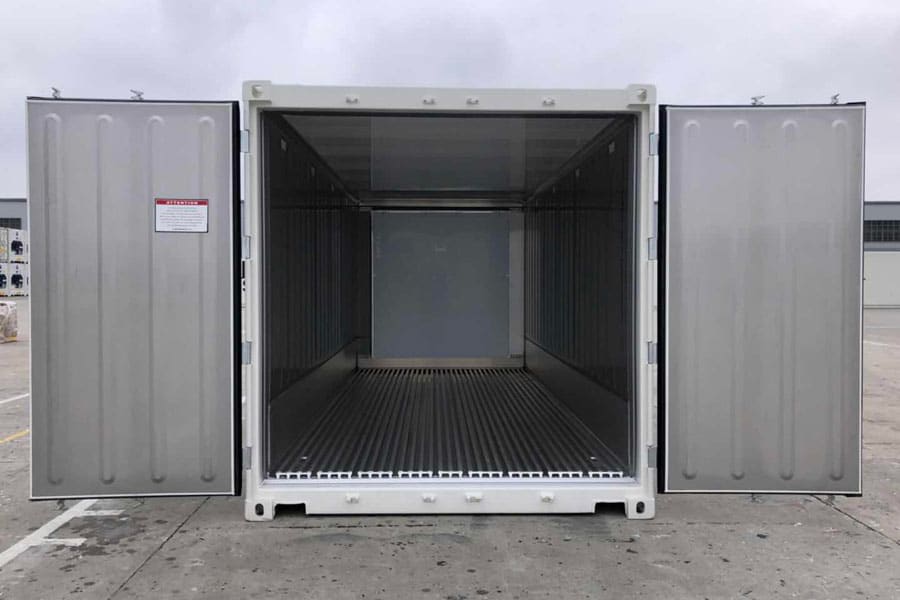

New 20’ ISO Reefer container body
Stainless steel (MGSS) outer cladding
4 Automatic floor drains, self-closing (2 front and 2 rear)
4 Lashing bars (2 per side)
Forklift pockets of 14” x 4.5” center to center spacing of 80”
Additional Features Included
60ft. power cable
Fully insulated with poly urethane
Stainless steel interior, food grade
Interior aluminum scuff liner
Aluminum T bar floor
Exterior: 20’L x 8’W x 9’6”H
Interior: 19’5″L x 7’8”W x 8’10”H
Door Opening: 7’8”W x 8’5”H
Weight: 2320.125 KG
Payload: 28161.28 KG
Dimensions
Exterior: 9’9”L x 8’W x 8’6”H
Interior: 9’4″L x 7’8”W x 7’10”H
Door Opening: 7’8”W x 7’5”H
Weight: 1519.534 KG
Payload: 13879.927 KG
Exterior: 20’L x 8’W x 8’6”H
Interior: 19’9″L x 7’8”W x 7’10”H
Door Opening: 7’8”W x 7’5”H
Weight: 2186.315 KG
Payload: 28295.092 KG
Exterior: 9’11″L x 8’W x 9’6”H
Interior: 9’6″L x 7’8”W x 8’10”H
Door Opening: 7’8”W x 8’5”H
Weight: 1519.534 KG
Payload: 13879.927 KG
Machinery specifications
Model: Carrier ThinLINE or similar
460 volts, 3 phase, 15KVA
30 amps circuit requirement
Temperature range: -25C to +25C
R134A Freon
Dimensions
Exterior: 40’L x 8’W x 9’6”H
Interior: 38’5″L x 7’6”W x 8’4”H
Door Opening: 7’8”W x 8’5”H
Weight: 4349.951 KG
Payload: 26131.456 KG
Exterior: 20’L x 8’W x 8’6”H
Interior: 19’3″L x 7’6”W x 7’6”H
Door Opening: 7’3”W x 7’1”H
Side door Opening: 18’9″L x 7’1″H
Weight: 3179.683 KG
Payload: 27301.725 KG
